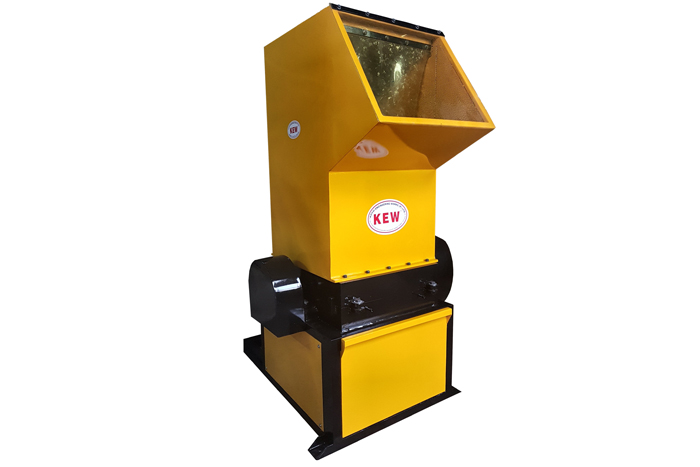

Plastic Shredder
The KEW Plastic Shredder Machine is specially designed for shredding and recycling different types of plastic waste materials efficiently. The machine is built with a heavy-duty rotor system and strong cutting blades to deliver smooth and high-performance shredding operation.
This advanced shredding machine is suitable for processing plastic bottles, containers, drums, pipes, sheets, and industrial plastic scrap into reusable plastic flakes. It is widely used in plastic recycling industries, waste management units, manufacturing industries, and recycling plants.

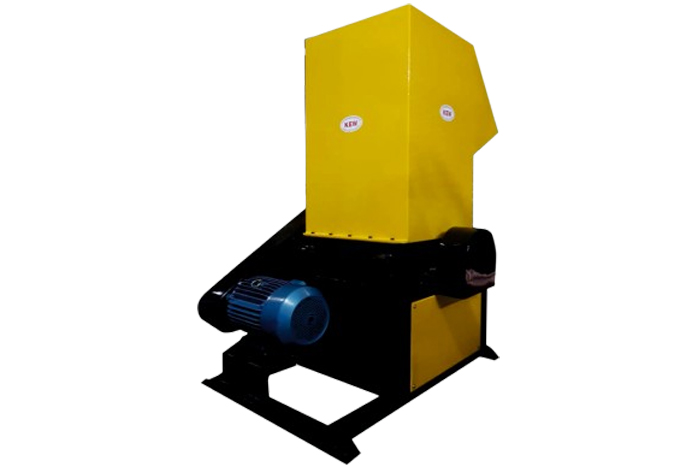

Gallery
Plastic Shredder Advantages
- Efficient shredding of different types of plastic waste materials.
- Reduces plastic waste volume for easy recycling and handling.
- High-speed operation with strong cutting performance.
- Produces uniform plastic flakes for recycling processes.
- Heavy-duty construction for long-term industrial use.
- Low maintenance and easy machine operation.
Special Features
- Heavy-duty rotor with high-quality cutting blades.
- Strong body structure for continuous operation.
- Low noise and energy-efficient performance.
- Easy feeding and smooth shredding process.
- Available in different capacities based on customer requirements.
- Compact and user-friendly machine design.
Applications
- Used in plastic recycling industries.
- Suitable for shredding plastic bottles and containers.
- Widely used in waste management plants.
- Ideal for industrial plastic scrap recycling.
- Used in manufacturing and recycling units.
Technical Specification
| Overall Dimension | Length 1350 mm × Width 900 mm × Height 1700 mm |
| Blade Details |
Material : OHNS / HC HCR Stationary Blades : 2 Nos Moving Blades : 6 Nos |
| Feed Hopper Details |
Throat Inner Size : Length 525 mm × Height 475 mm Insulation : 25 mm thickness filled with fibre glass wool and covered by perforated MS sheet for sound proof operation. Hopper mounted on frame with bolts and nuts for easy maintenance. Spillage Protection : By Acrylic Sheet |
| Sieve Details | Hole Diameter 8 mm Length 525 mm × Height 475 mm and removable type to fix bigger diameter sieve for shredding different materials. |
| Bearing Details | UCP - 211 - 2 Nos |
| Power Source | 10 HP 3 Phase Electrical Motor |
| Output Capacity | 80 - 150 Kgs Per Hour |
